Lab 3. Github

Learning Objectives

  1. Create a Github Org. Create a new Github organization based on your Project Key (e.g. ohi-science). This will be your team’s organization and repositories within for producing deliverables, including a website.

  2. Fork Repo into Github Org. Fork the template final project repository EDS220_Fall2021_FinalProjInfofrom from samanthastevenson into your organization. Forking makes a copy of the original repository into a new owner.

  3. Understand Github Workflows. A Simple workflow assumes you have read and write access to a repository. You can synchronize changed files (from using git commit) between your computer and Github by simply using git push and git pull. If you don’t have write access, i.e. unable to perform a git push, then you need to make a copy of the repo with a Github fork into your own writable owner space, i.e. under your Github user or a Github organization to which you can write. This is the Contribute model and what powers contributions from community members in the open-source world. Even if you have write capabilities on the repository, you may wish to make a copy with git branch to avoid merge conflicts with others while you’re working on some new feature or bug fix. This is the Sandbox model. Either the forked or branched copy can be synchronized with the original via a pull request from the contributor and a merge from the origin’s owner.

  4. Create & Share Website Repo using Github Pages. The default website repo under a Github organization named exactly {org}.github.io is what gets served via the URL https://{org}.github.io once Github Pages gets turned on in the repo Settings. You’ve already done this in the MEDS program for your Github {user} space, i.e. https://{user}.github.io.

  5. Build Rmarkdown Website. This simple website uses a _site.yml file to apply consistent navigation bars and defaults to all pages. The original *.Rmd files render to *.html for serving online. The default web page for any folder is the index.html.

  6. Contribute Workflow: Fork & Pull Request. After you fork any public repo into your own space, you can make changes and contribute those back to the original repo with a pull request, which can then be incorporated with a merge by the original repo owner. This is how the open-source world works to incorporate code from the community. You’ll use this technique to contribute towards a class directory of projects in the course repo bbest/eds211-team.

  7. Sandbox Workflow: Branch & Merge. Create a branch in RStudio and merge it in the Terminal.

  8. Handle Merge Conflicts. Conflicts are inevitable when collaborating with others, so knowing how to deal with them is a key part of the process. Git commits of two different users might operate on the same line(s) of code, which need to be reconciled when merging.

  9. Use Github Issues. Tihub Issues allow you to track progress on an issue with a thread of comments and any Git commits between. In the comments Github flavored markdown allows you to reference other issues (e.g. #2), Github commit messages or Github users (e.g. @bbest), who even get notified by email.

  10. Use Github Milestones. Github Milestones allow you to cluster issues into a deadline date. Milestones only work per repo and are anticipated to be superseded by Github Timelines in the future for working across repos for a given Github owner.

  11. Use Github Projects. These Kanban boards provide the high level view of tasks organized by priority vertically and horizontally over time. You can filter by Assignee and with the new Project Beta even add your own fields and view as a table.

1 Create Github organization [lead only]

The Github Organization you create will become the {owner} of the project’s main {repo}. Remember, all of Github is organized according to github.com/{owner}/{repo}.

Have only one group project member follow instructions to Create a new organization from scratch - GitHub Docs. Even more simply, choose + and New organization from upper right of github.com once you’re logged in:

1.1 Edit All Invited People to make Owner [lead only]

Now the lead needs to visit the People tab of the organization, visit Pending invitations and make everyone an Owner (gear icon, Edit invitation, Owner, Update invitation).

1.2 Accept invitations [all members]

All the rest of the team members need to accept the invitations, which can be done by directly visiting https://github.com/{org}/{repo}/invitations.

2 Fork samanthastevenson/{repo} into {org}/notebook [lead only]

Next one person from your group will fork the template repo samanthastevenson/EDS220_Fall2021_FinalProjInfofrom where {owner} = samanthastevenson into your new Github organization (e.g. {owner} = ohi-science from Project Key of EDS 211 - Lab 1. Proposal).

Follow instructions from Fork the repo - GitHub Docs:

Please rename the repo from EDS220_Fall2021_FinalProjInfofrom to notebook, which can be done under the repo’s Settings, Repository Name.

3 Clone {org}/notebook onto your machine [all members]

Click on the RStudio Terminal pane where you enter shell commands to the operating system (NOT the RStudio Console where you enter R commands). Enter the following command to git clone the repo onto your machine.

# Change directory (cd) to where you want to store the repo on your machine
# Be sure that it is OUTSIDE any other repo
cd ~/github

# clone the repo onto your machine
git clone https://github.com/{org}/notebook.git

4 Background: Github Workflows

There are a variety of ways to interact with a Github repository, or REPO for short, which is a collection of files, possibly organized within folders. On Github every repo is associated with an OWNER, which can be a Github organization or a Github user. Repos are consistently found at github.com/OWNER/REPO.

If you have write permissions to the repo, then you can git push changes to it directly. These changes are always first packaged as a set of file differences by a git commit that requires a message.

If you do not have write permissions to the repo, then you need to Github fork that repo into your own user-writable space (user or organization). After you make changes to the files in your user-writable repo (with git commit and git push), you can then request those changes be pulled into the original repo with a Github pull request.

Furthermore, you can git branch a snapshot of the repo files into a sandbox for continuing to make changes, such as to fix a bug or implement a new feature. This branch won’t affect the main branch until you’re ready to git merge those changes, so it isolates development.

These aspects give rise to different workflows with increasing complexity that we’ll incrementally try out with exercises, so you can become comfortable managing your own code, contributing to other open-source projects, and working on a set of code without trampling on other people’s work.

show
icon_down   <- icons::fontawesome$solid$`arrow-down`
icon_up     <- icons::fontawesome$solid$`arrow-up`
icon_right  <- icons::fontawesome$solid$`arrow-right`
icon_cloud  <- icons::fontawesome$solid$cloud
icon_plus   <- icons::octicons$plus
icon_pc     <- icons::octicons$device_desktop
icon_dl     <- icons::octicons$download
icon_ul     <- icons::octicons$upload
icon_commit <- icons::octicons$git_commit
icon_pull   <- icons::fontawesome$solid$`cloud-download-alt`
icon_push   <- icons::fontawesome$solid$`cloud-upload-alt`
icon_merge  <- icons::octicons$git_merge
icon_fork   <- icons::octicons$repo_forked
icon_pr     <- icons::octicons$git_pull_request
icon_clone  <- icons::octicons$repo_clone
icon_branch <- icons::octicons$git_branch

4.1 Simple: push & pull

The simplest workflow for tracking file changes is to simply git push changes into your Github repo, assuming you have write permissions to that repo. If you’re working with anyone else or editing on more than one computer, then you’ll want to git pull changes at the beginning of each session to capture changes and minimize potential conflicts before proceeding with any edits and subsequent git commit and git push commands.

The exact steps can be described in the table below. After the Github create repo step, you git clone it to get a copy of it onto your machine (with the hidden .git folder containing the configuration). Then you make changes on files and package differences with git commit, which requires a message every time and can happen offline. You’ll need to be online to then run git push to publish those changes back to the Github repo. Then before subsequent changes, you’ll want to update your machine with a git pull.

repo location initialize edit update
github.com/OWNER/REPO create
~/github/REPO clone   commit , push pull

4.2 Contribute: fork & pull request

If you don’t have write access to a Github repo, such as with any open-source project, then you can Github fork somebody else’s repo into your own user-writable space (i.e. OWNER being a Github user or organization) where you have write permissions. There you can make changes (using git commit and git push). When you’re ready to submit changes to the original repo, you make a pull request queuing these changes up for the owner(s) of the original repo to review and accept with a merge, reject or ignore. Github facilitates the conversation that may follow, including the ability to update the pull request before performing the final merge.

repo location USER permission initialize edit update
github.com/OTHER/REPO read only merge
github.com/OWNER/REPO read + write fork pull request pull request , merge
~/github/REPO read + write clone   commit , push pull

4.3 Sandbox: branch & merge

Even if you’re able to write directly to the repo, you may be collaborating with others and not want to step on their proverbial coding toes. By performing a git branch, you’re taking a snapshot of the files and isolating them into your own sandbox. For instance let’s say you’re working on a new feature, then you might call your branch generically new-feature. Subsequent changes to the files in the Github repo (with git commit and git push) do not then affect the main branch until a git merge is executed to fold these changes of new-feature into the main branch.

repo location USER permission initialize edit update
github.com/OWNER/REPO branch: main read + write
~/github/REPO branch: main read + write clone merge , push
~/github/REPO branch: new-feature read + write branch   commit pull

The scenario above shows the branch and merge happening locally, but you can also execute these on Github. The RStudio IDE provides the ability to create a new branch locally, but then to perform the git merge you need to do this in its Terminal.

4.4 Pro: branch, pull request & merge

Extending the Sandbox workflow to full “professional” status, even if you have the administrative ability on the repo to perform a git merge you may wish to first advertise your proposed file changes to other contributors with a pull request. This then allows others to review and discuss changes before an admin then performs the final git merge. This is the recommended workflow described in Understanding the GitHub flow · GitHub Guides:

We want go over this entire workflow in this lesson, but it simply combines all the techniques above.

5 Create website repo {org}.github.io [lead only]

Now one person from your group will create a Github repository for your project’s website. Github Pages uses owner/repository {owner}/{owner}.github.io to host the owner’s website at https://{owner}.github.io where {owner} can be either a Github username or organization. All other repositories, i.e. {owner}/{repo}, can also have websites served via Github Pages as https://{owner}.github.io/{repo}.

This repo will contain the source code of an Rmarkdown website that will host the online landing site for your group project.

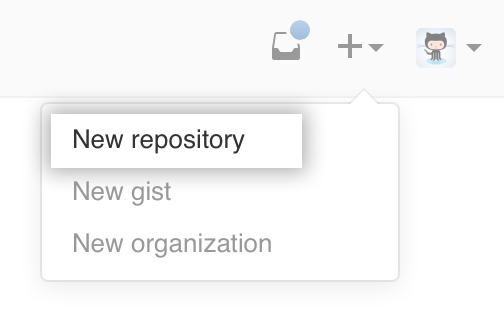

  1. With your web browser, sign into Github.com and visit your Github organization (i.e. https://github.com/{org}) and Create a repository called {org}.github.io, where {org} is your Project Key from Lab 1.

Please tick the box to Add a README file, which gets generated from the Description you should also fill out with something like group project website for [EDS 211](https://bbest.github.io/eds211-team). (Note the use of markdown for a link.)

You should now see this repo at https://github.com/{org}/{org}.github.io.

Notice that the only file in the repo so far is the README.md, which is in markdown format (.md) and its contents are displayed directly below, which is the special case for any README.md file in a Github folder. Clicking on the pencil icon to edit, reveals the source for this file.

Clicking on the Preview tab shows the formatted result. Note how the # is used to create a header.

For more on formatting text with markdown within Github, check out Mastering Markdown · GitHub Guides.

5.1 Create RStudio Project

Next, you’ll use RStudio to initialize this website repo in two important ways:

  1. You’ll let RStudio run git clone to copy the git repository onto your machine containing the README.md and importantly a hidden folder .git/ which contains all file history and the configuration on where to synchronize files, i.e. Github.

  2. By creating an RStudio Project, you’ll create an {org}.github.io.Rproj file. This will be an executable that you can double-click on from Windows Explorer or Mac Finder that will open RStudio and set the working directory to that containing folder. This assures that others who similarly open the project will start with the same working directory, so relative paths to other files in the repo will work regardless of where that repo lives on an individual machine. This is important for making your R code portable for others to use.

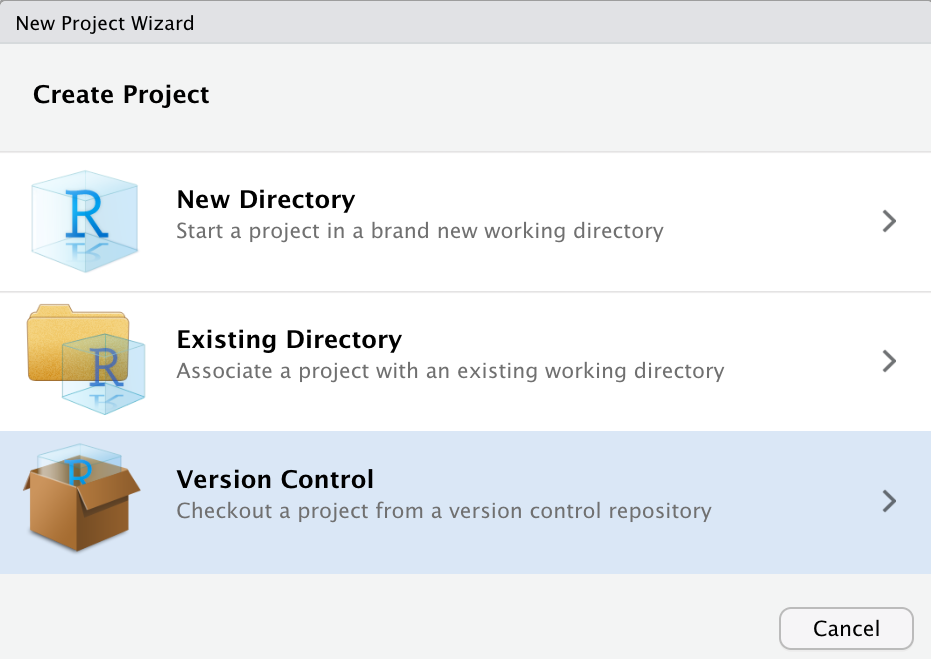

From RStudio menu File -> New Project…

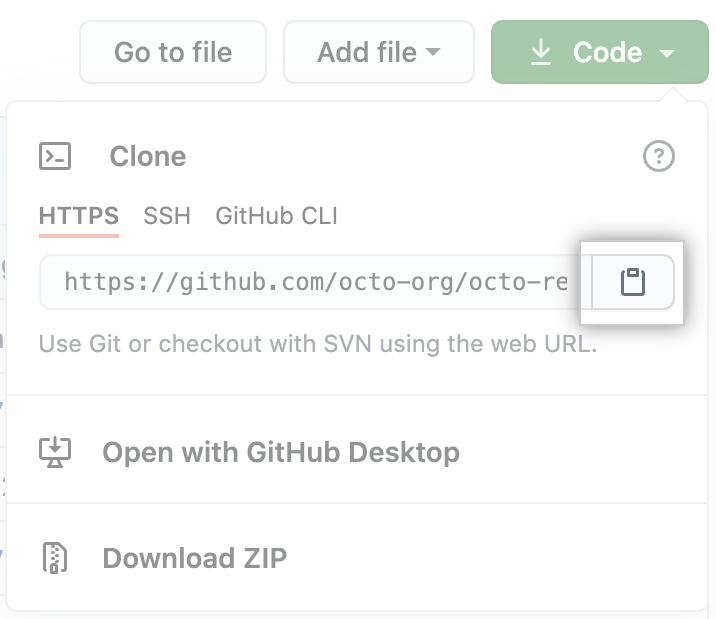

Choose Version Control -> git and enter the Repository URL with the .git extension. This Repository URL is also easily copied into your clipboard from your web browser by clicking on the green Code button of your new repository (i.e. https://github.com/{org}/{org}.github.io):

Then paste (Ctrl + V) into the Repository URL field of the form.

I chose to Create the project as a subdirectory of ~/github which means my home directory (~) and subfolder github, but you can create it wherever makes sense on your computer.

If it all works correctly then you should see the files downloaded and showing up in the Files pane of RStudio. If RStudio is configured correctly to work with Git, then you should also see a Git pane.

Besides the desired RStudio Project file {org}.github.io.Rproj, you should also see the .gitignore. This file describes files that git should ignore and so not prompt for asking whether to track with version control. If you open the .gitignore file in RStudio, you see it’s a simple text file listing hidden files (i.e. those starting with a . and not normally shown in Windows Explorer or Mac Finder) that RStudio uses.

.Rproj.user
.Rhistory
.RData
.Ruserdata

5.2 Simple push

Note that in the Git pane, the yellow box question marks under Status next to .gitignore and {org}.github.io.Rproj indicate these files are not known to the version control system (and asking should they be?). Ticking the boxes under Staged changes the Status to a turquoise A for added.

Now click the Commit button in the Git pane to open the Review Changes dialog window. Every commit requires a message.

Click the Commit button in the Review Changes dialog window. Close this dialog. Note how now “Your branch is ahead of ‘origin/main’ by 1 commit”. The previous git commit operation happened only on the local machine. The “origin” is Github and “main” referring to the main branch.

Next, you need to Push these changes by clicking on the button in the upper right.

You should now see these two new files showing up in your repo at https://github.com/{org}/{org}.github.io. These files are displayed with the filename, most recent commit message associated with any changes and the time since last update.

5.3 Create Rmarkdown website

Following guidance from 10.5 rmarkdown’s site generator | R Markdown: The Definitive Guide, create a _site.yml by going to RStudio’s menu File -> New File -> Text File and paste the following:

name: "{org}"
navbar:
  title: "{org}"
  left:
    - text: "Home"
      href: index.html
    - text: "About"
      href: about.html
output_dir: "."

Be sure to replace {org} with your organization’s Project Key, e.g. ohi-science. Save this file as _site.yml.

Next create your index.Rmd with this simple content:

---
title: "Welcome"
---

Hello, Website!

Add another page about.Rmd:

---
title: "About"
---

## Team Members

Finally, render the website by running the following in your R Console:

rmarkdown::render_site()

You might need to install the package rmarkdown, which you can do from RStudio’s Packages pane, Install button and typing “rmarkdown”.

The Viewer pane now shows the rendered html. Also notice the unversioned files. Let’s get these onto our Github repo by going into the Git pane like previously, ticking the Staged boxes, clicking Commit, adding a message like “initial website”.

Click on Commit in the dialog. Close the Git Commit window and then click on Push so your branch is not ahead of the origin Github.

You should now see these new files showing up in your repo at https://github.com/{org}/{org}.github.io.

Next, let’s get these files served as a website.

5.4 Setup Github Pages to serve website

Github Pages allows you to serve up simple websites from your Github repo. Let’s turn on this feature by visiting the Settings tab in https://github.com/{org}/{org}.github.io. Then click the Pages menu from the left navbar, choose Branch: main, folder / (root).

Click Save. You should now see that the site is “ready to be published”.

You should now be able to visit the website URL:

Notice how the URL is a subset of your Github repo URL:

For easily referencing the website, I recommend returning to the Github repo https://github.com/{org}/{org}.github.io, clicking the upper right About and adding it to the Website entry.

You should now see a handy link to get to your website.

6 Contribute to eds211-team [all members]

So far you’ve been using the Simple workflow to synchronize repos between Github and your local machine with git push and git pull. Next, you’ll learn how to contribute towards a repo for which you don’t have write permissions by performing a fork and pull request, i.e. the Contribute workflow.

You don’t have write permissions to the /bbest/eds211-team repo where these course materials are stored. The task is to contribute to this repo with the sparset amount of information, an empty file indicating your project organization on Github and your Github username under the existing projects/ folder, eg projects/ohi-science/bbest.

To do so, please visit github.com/bbest/eds211-team and in the upper right, click Fork .

Next, choose your Github USER name as the owner into which this repo should be forked.

Notice how the URL changed from github.com/bbest/eds211-team to github.com/{user}/eds211-team.

You now have write permissions on this repo.

You could proceed with cloning the repo onto your local machine, making changes there with git commit and pushing to Github with git push, however we’ll take care of this directly through Github web interface.

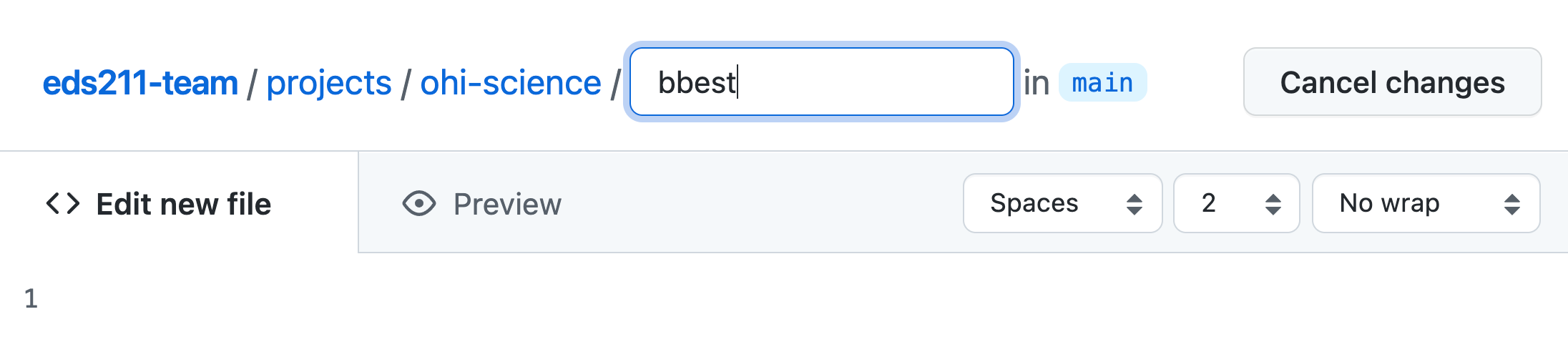

Visit the projects/ folder of your forked repo. On the right click Add file, Create new file. Enter the exact name of your group project’s Github organization (upper/lower case matters) and a forward slash (to denote a folder). Then add your exact Github username, e.g.:

You do not need to enter anything in the content of the file. Simply click the green Commit new file button, which is the web equivalent of git commit (and git push since it’s already on Github.com).

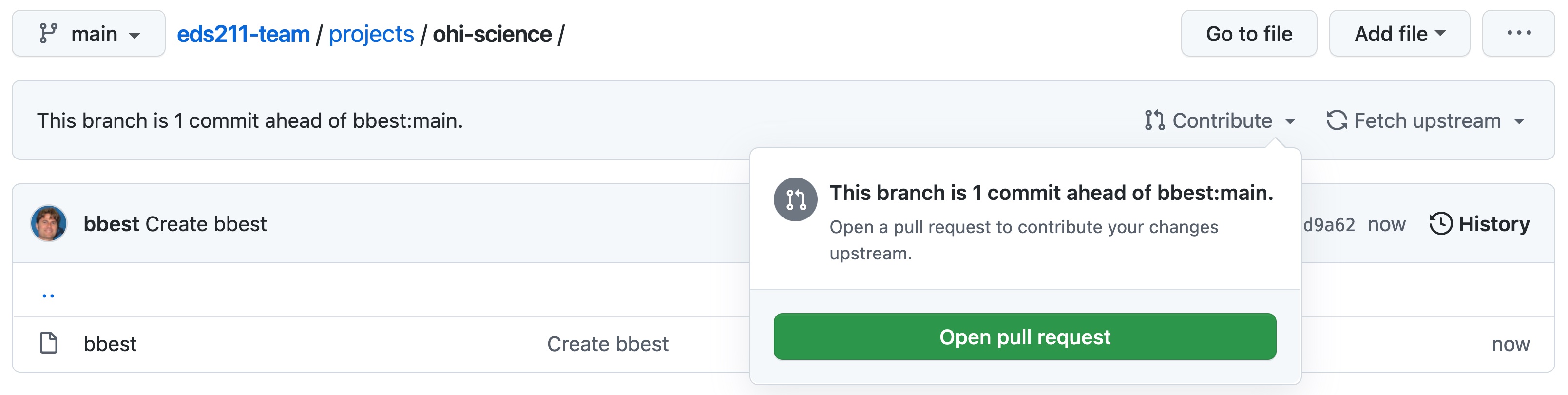

You’ll notice that this branch is “1 commit ahead of eds211-team:main”. Click on Contribute, Open pull request.

You should be taken to a screen asking for confirmation where you chould click on Create pull request. Normally, you’d leave a comment explaining what this pull request is for (but it’s obvious enough in this case). Click on the final Create pull request. Now you should be taken to the origin github.com/bbest/eds211-team (NOT your {user} forked copy) and under the Pull requests see yours.

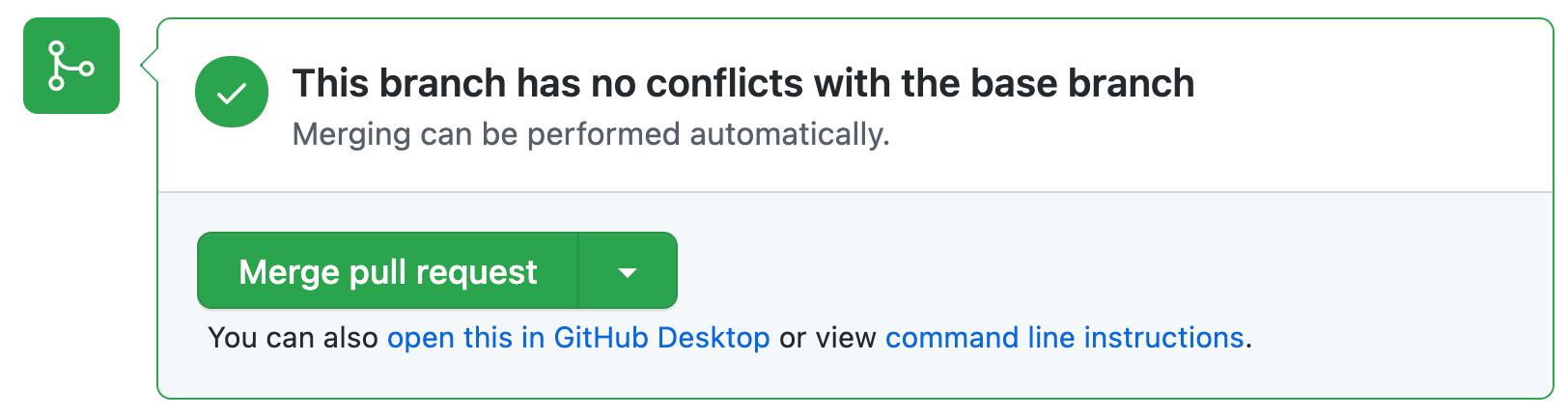

The image above shows a Merge pull request since I have admin privileges on this repo. You would NOT so would see it grayed out (or similar).

Good job! Nothing left for you to do except wait for me (as admin of this repo) to click on Merge pull request.

7 Sandbox on {org}.github.io [all members]

Next, you’ll level up your git skills by isolating development of your code in a new branch, which is like a Sandbox separate from the main branch. Your task is to simply add your name to the About page.

Please open your {org}.github.io.Rproj RStudio project where your website is hosted. Notice that in the upper right of RStudio you get Project shortcuts to quickly navigate to them. Or you could always double-click on the *.Rproj file from your file explorer application (Windows Explorer or Mac Finder).

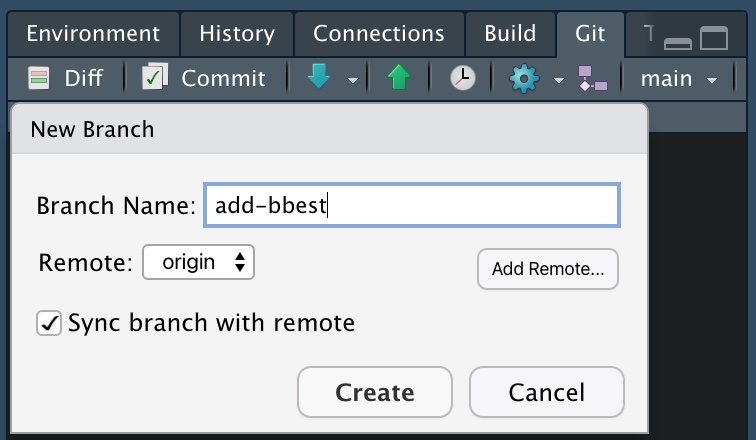

In RStudio’s Git pane click on the New Branch button and enter a Branch Name with your username, e.g. add-bbest:

Click Create. You should now see your new branch. Notice how when you click on the dropdown of branches you see both LOCAL and REMOTE: ORIGIN (as in on Github) versions.

Next, simply edit about.Rmd and add a bulleted list item with your name linked to your Github profile below ## Team Members, e.g.:

- [Ben Best](https://github.com/bbest)

Now you’re ready to Commit and Push your changes. Once you’ve done that, please visit https://{org}.github.io/{org}.github.io with your web browser. Notice that about.Rmd is still the old Rmarkdown page without your name added. You simply need to select the add-{user} branch to see those files in their own little sandbox.

Returning to RStudio, you’re ready to git merge the changes in the rmd-website branch to the main branch. In RStudio’s Git pane switch back to the main branch.

RStudio doesn’t provide a user interface to run the git merge command so you’ll have to do this in RStudio’s Terminal pane by entering:

# be sure to change this to your actual branch name
git merge add-{user}

You’ve now merged your LOCAL changes from the add-{user} branch to the main branch, and see in the Git pane that “Your branch is ahead of ‘origin/main’ by 1 commit.” This means that you’re ready to git push them to the ORIGIN on Github by running good ol’ Push.

Now at last you should see these file changes showing up at https://{org}.github.io/{org}.github.io.

It might take a minute or so before they show up on your website at https://{org}.github.io. This is because Github Pages were originally designed to render static webpages with some templating capability (e.g. a common navigation menu) using Jekyll. To speed up rendering and disable Jekyll create an empty text file called .nojekyll in the source of the Github Pages folder, in this case the root folder of the repo. On a Mac, you can run this command in Terminal:

touch .nojekyll

Be sure to Commit and Push these changes to Github.

8 Handle Merge Conflict on Github [all members]

You can also perform a merge of a branch on Github with a pull request (vs previously more directly with git merge in the Terminal). If there’s a conflict, Github provides a convenient text editor to resolve any conflicts. You will intentionally create a conflict between two branches and merge them on Github.

You’ll use the time repo you created in Lab 2. Time to play with handling a merge conflict.

8.1 Create new branch test-conflict in {user}/time repo

Previously you created a new branch in RStudio GUI that sends the git branch command to the Terminal. Now you’ll create a repo branch via Github. Let’s use the personal repo {user}/time you created in Lab 2.

Visit https://github.com/{user}/time in your web browser. To create a new branch click on the button with branches in the upper left of the default < > Code tab. The default branch selected is main. Enter test-conflict and select Create branch: test conflict from main:

8.2 Insert ## Welcome header in test-conflict branch

From the previous step you should notice getting switched over to the new branch test-conflict based on the branch selected dropdown in the upper left.

Click on index.Rmd and click the pencil icon to insert the following:

## Welcome

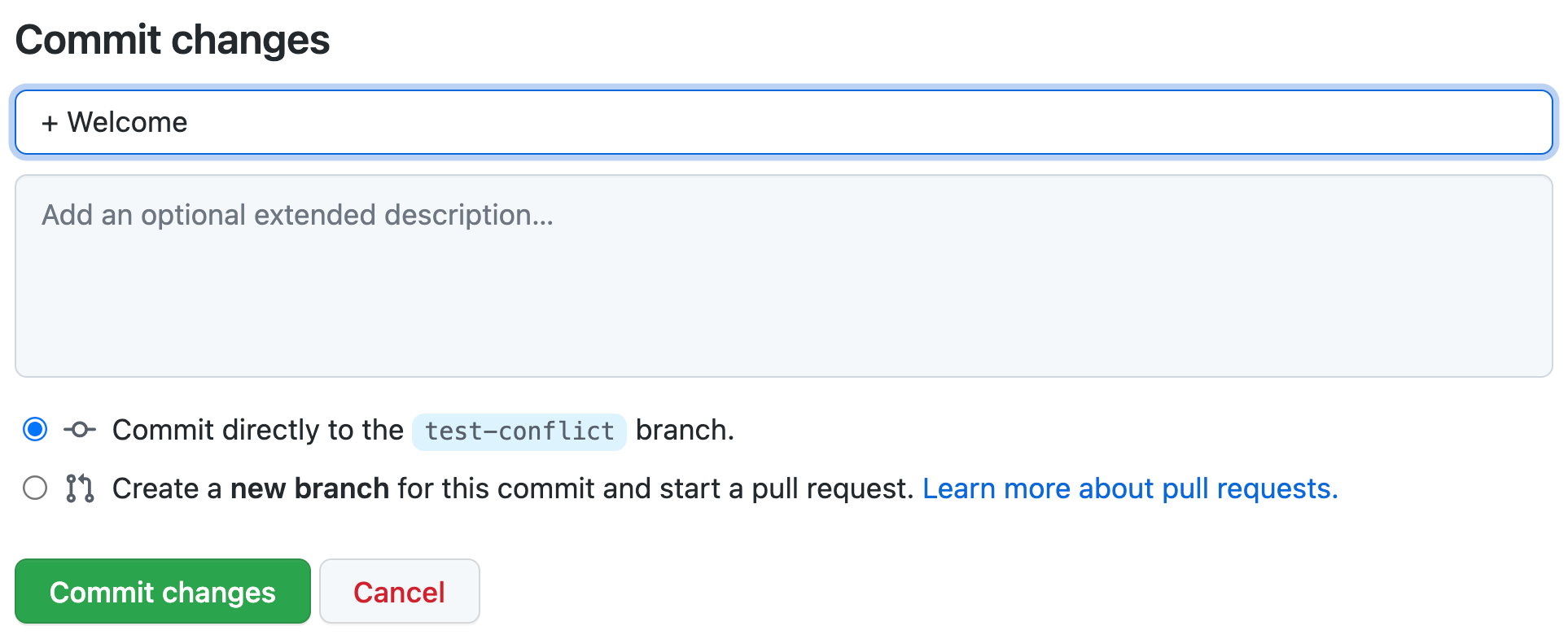

Scroll down and notice enter a message under the Commit changes header of “+ Welcome”:

Click on the green Commit changes button. Since you’re already on Github, you don’t need to Push.

8.3 Insert ## Hello header in main branch

While still viewing the index.Rmd file in Github, switch to the main branch. You should notice that the ## Welcome header is absent.

Click on the pencil icon to insert a different greeting in the same location as the previous ## Welcome:

## Hello

Scroll down and notice enter a message under the Commit changes header of “+ Hello”. Click on the green Commit changes button.

8.4 Create Pull Request: main <- test-conflict

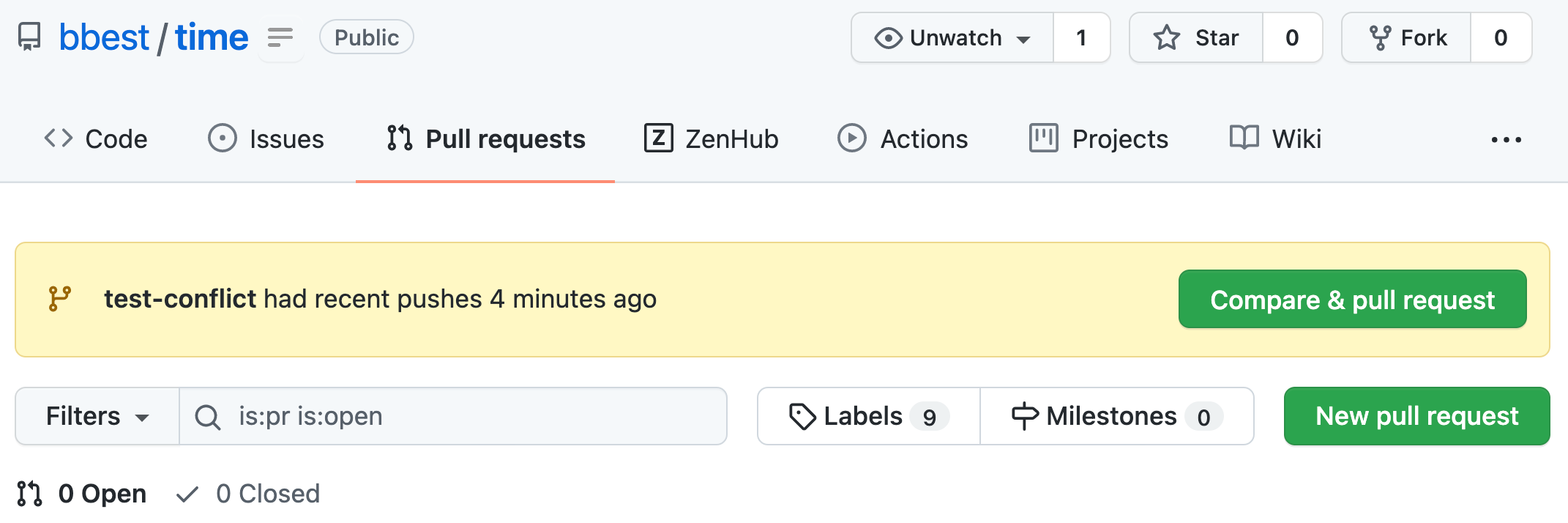

Now visit the Pull requests tab of your time repo. You might notice a suggestion to Compare & pull request the test-conflict branch since Github noticed recent changes there.

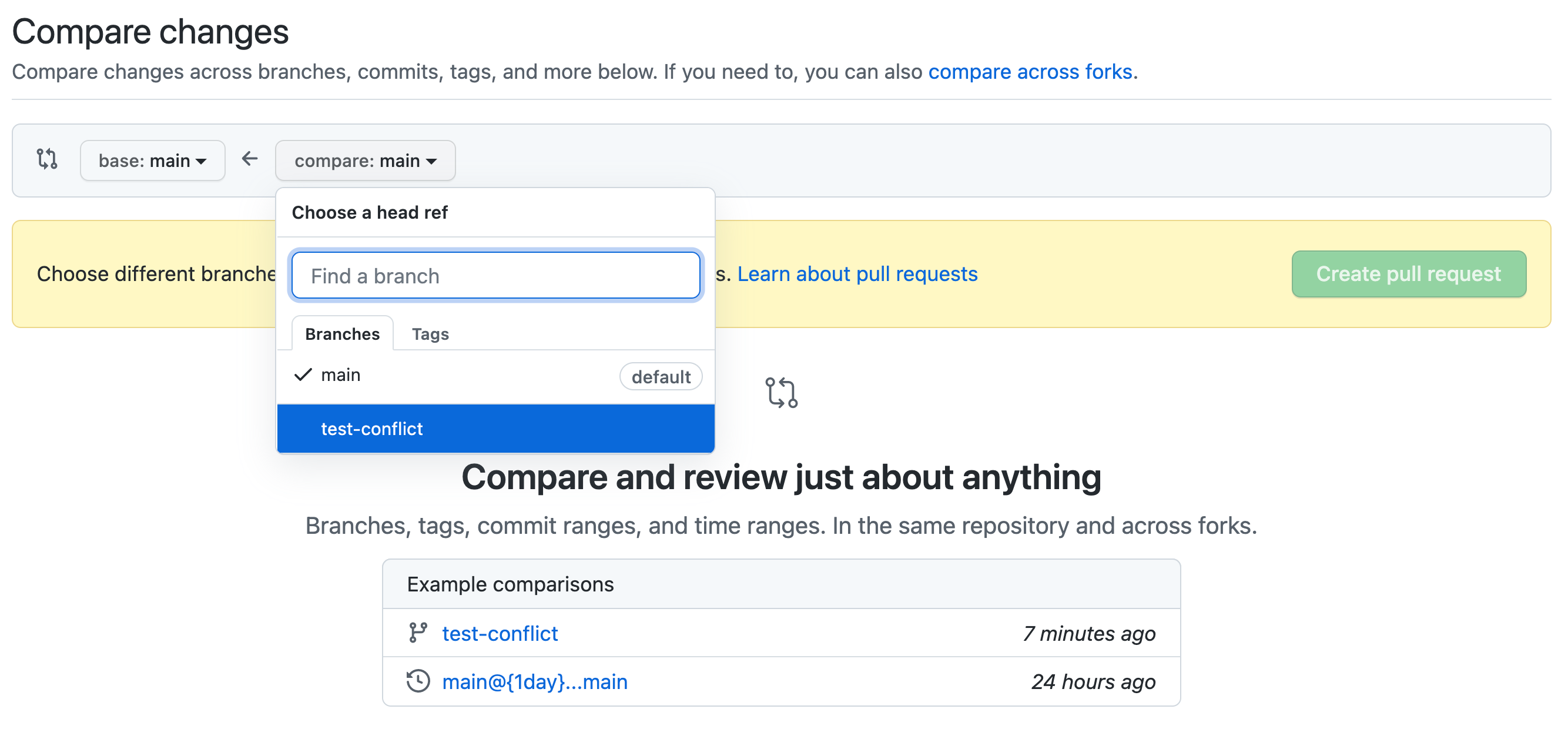

So you know how to create one regardless of prompting, click on the New pull request button.

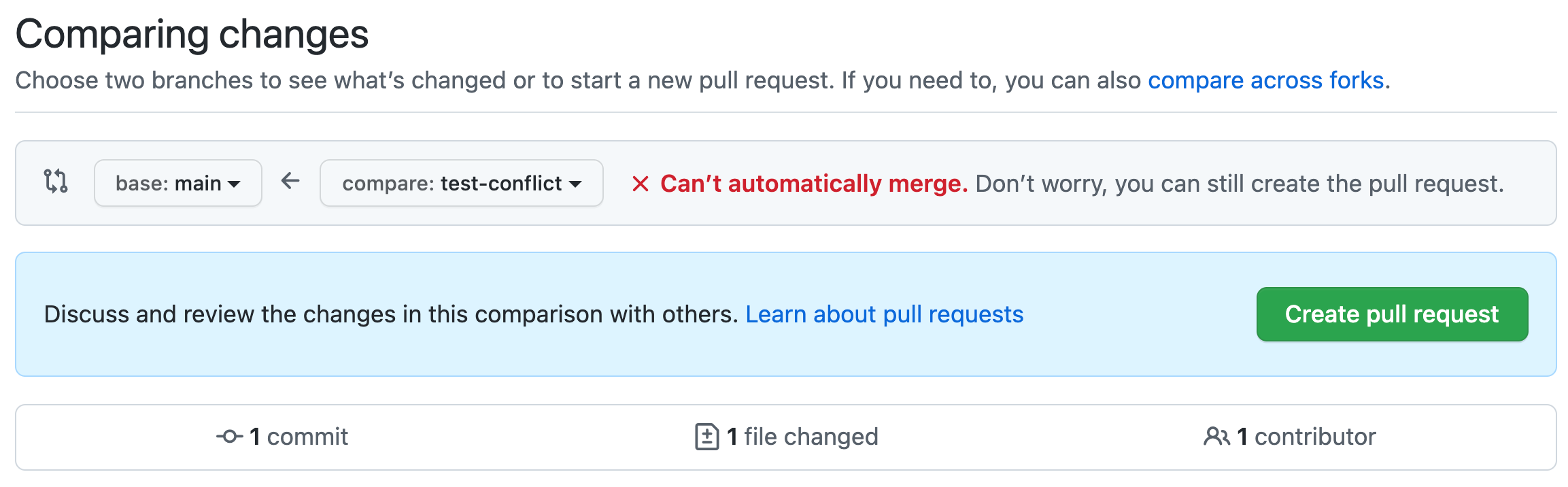

Select the test-conflict branch. Notice how it says it Can’t automatically merge..

Click Create pull request. Let’s give this pull request the title Hello (main) <- Welcome (test-conflict) to remind ourselves what’s updating what. Because we intentionally created a conflict on the same line of code, you should see the following warning.

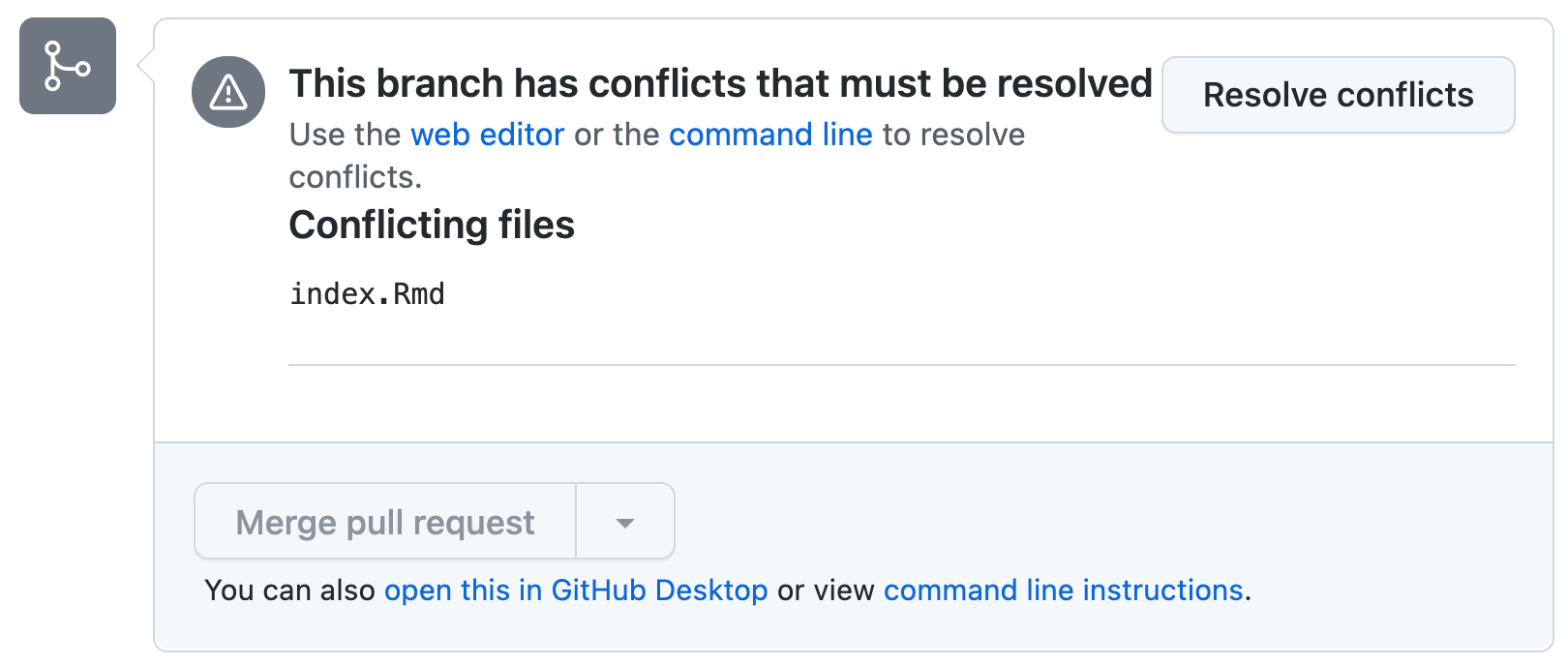

Click the button to Resolve conflicts.

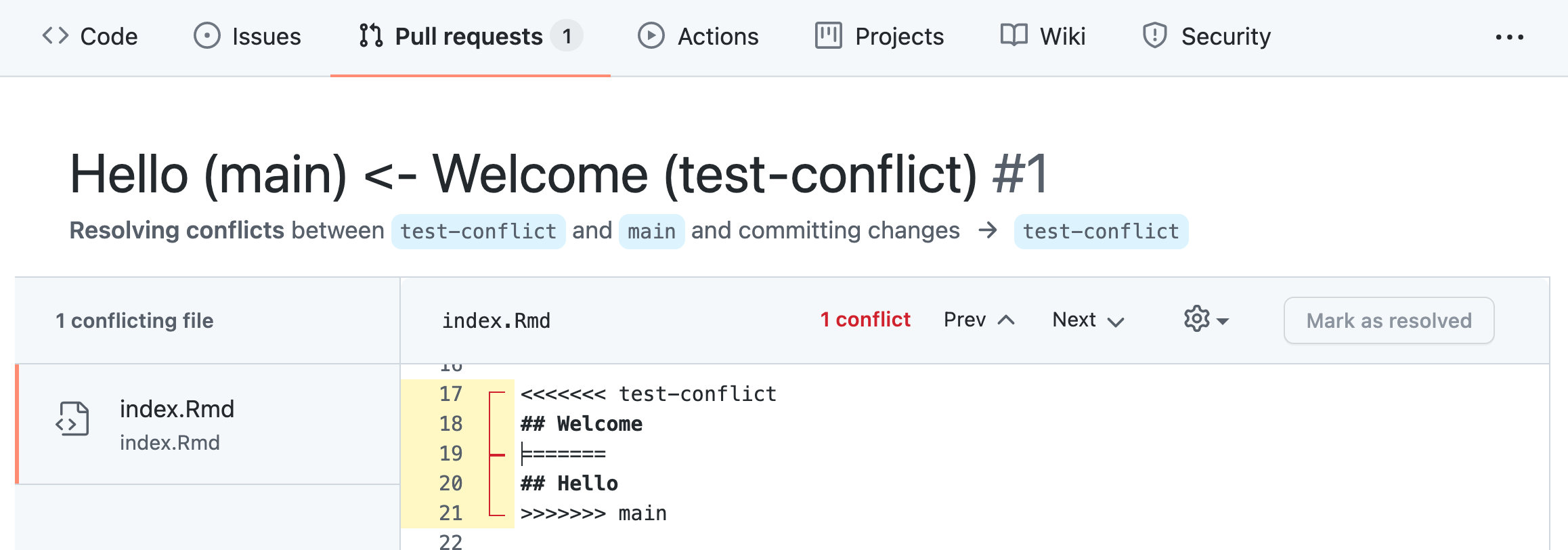

Notice how you are now presented with files on the left pane and an editor to the right with highlighted lines to resolve and the ability to click on Prev and Next if we had multiple conflicts.

The conflicts are presented by comparing one branch starting with <<<<<<< {branch1} and ending with the other >>>>>>> {branch2} seperated by =======.

<<<<<<< test-conflict
## Welcome
=======
## Hello
>>>>>>> main

So if we want to go with the ## Welcome header, reduce the lines above to simply:

## Welcome

And Mark as resolved. Then click on the green Commit merge button. You should then see the option to finally Merge pull request.

Click on Merge pull request and Confirm merge.

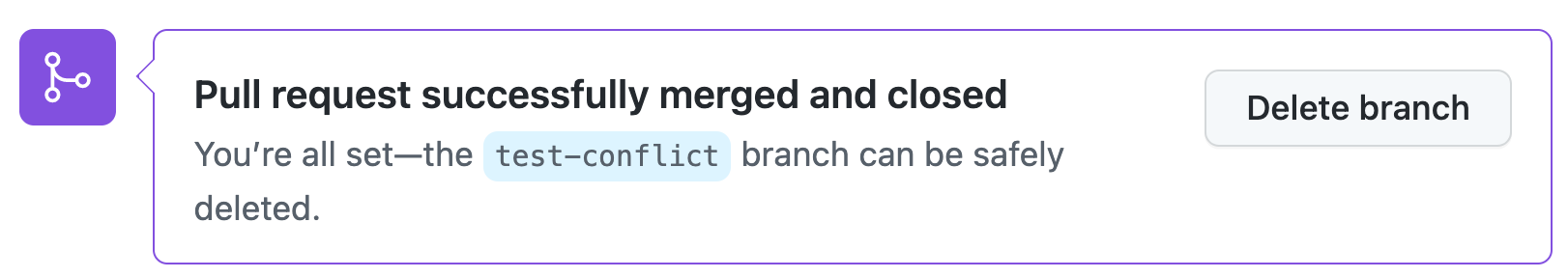

Congratulations! Finally delete the branch which is no longer needed.

9 Use Github Issues

Next, you’ll learn how to create and use Github Issues. Github Issues allow you to discuss tasks, whether fixing a bug or creating a feature, as a thread of comments. They can be assigned to Github users on your team and organized with labels, Milestones and Projects (up later).

9.1 Create Issue in {user}/time [all members]

Please again visit your personal repo https://github.com/{user}/time that you created in Lab 2. Click on the Issues tab and click the green New issue button.

Give it the following Title:

testing Github Issue features

And add the following into the initial commment:

## Github Issue Basics
- [x] Create an issue
- [x] Create this task list in initial comment of issue
- [ ] Convert the following two tasks into issues:
  - [ ] Assign user

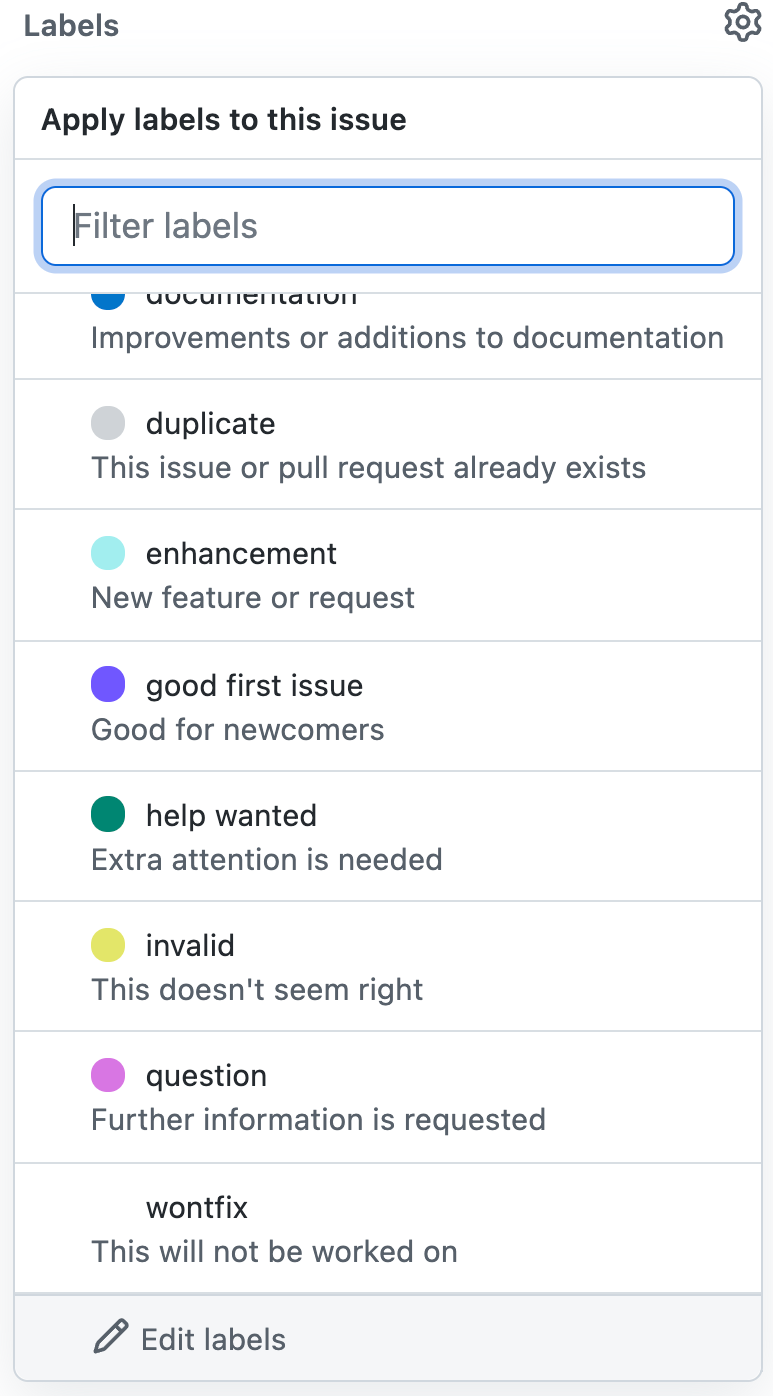

  - [ ] Add new label
- [ ] Add emoji reaction to a comment

## Github Flavored Markdown in Issue Comments
- [ ] Paste a screenshot into a comment

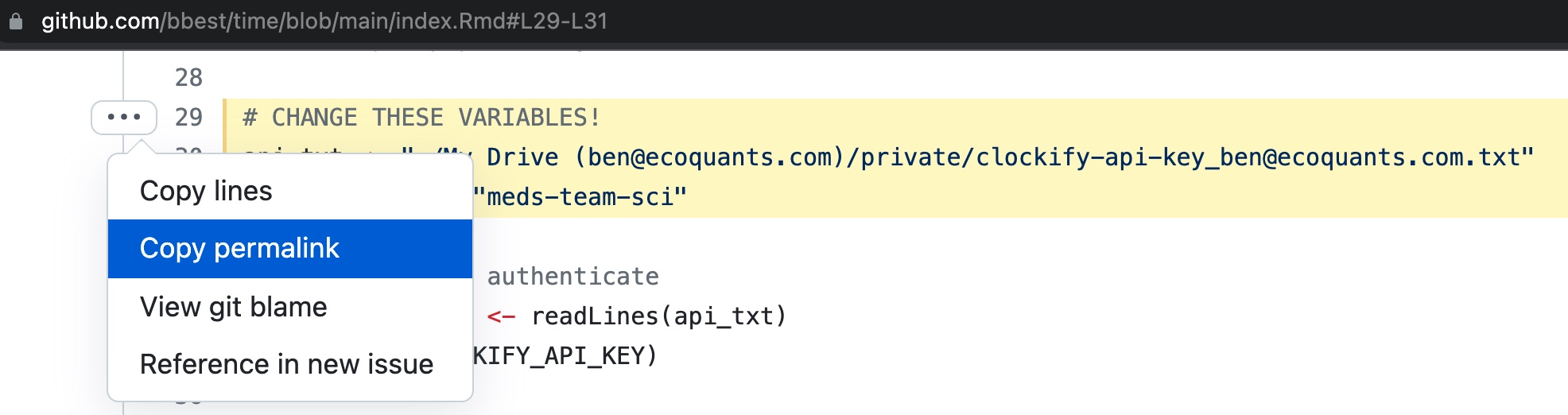

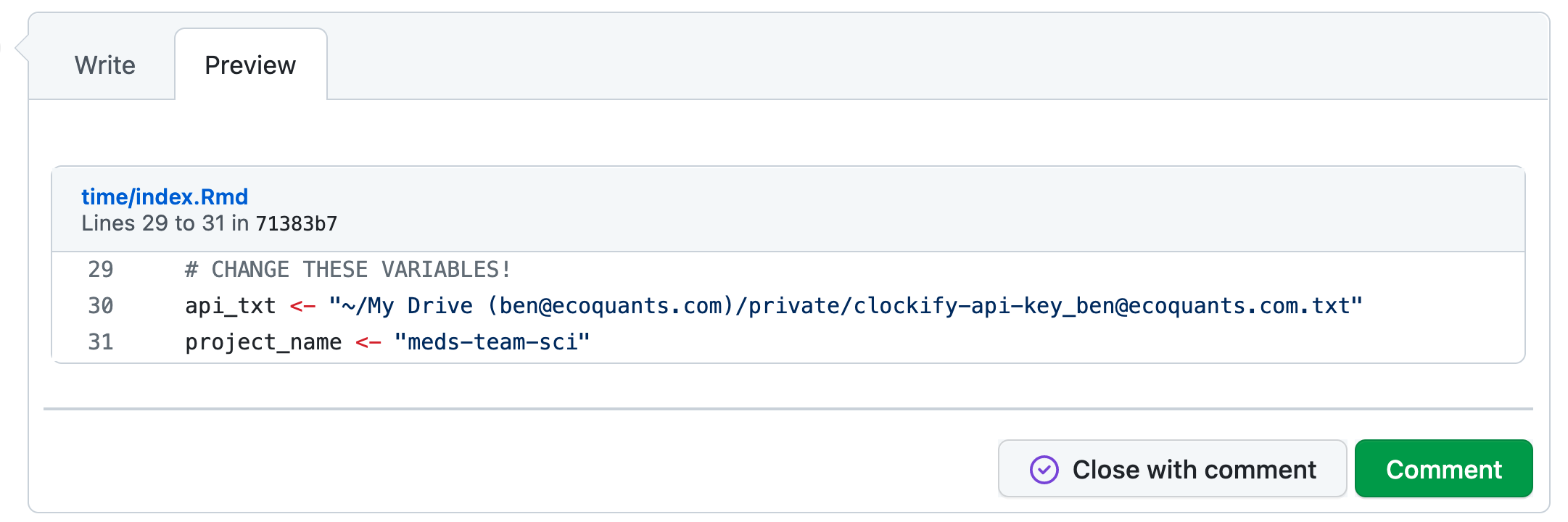

- [ ] Reference lines of code with a canonical URL
- [ ] Add a fenced R code block
- [ ] Mention a Github user on your team
- [ ] Use emoji in a comment

## Reference Issues
- [ ] Mention in issue comment another issue that is in the same repo
- [ ] Mention in issue comment another issue that is in a different repo

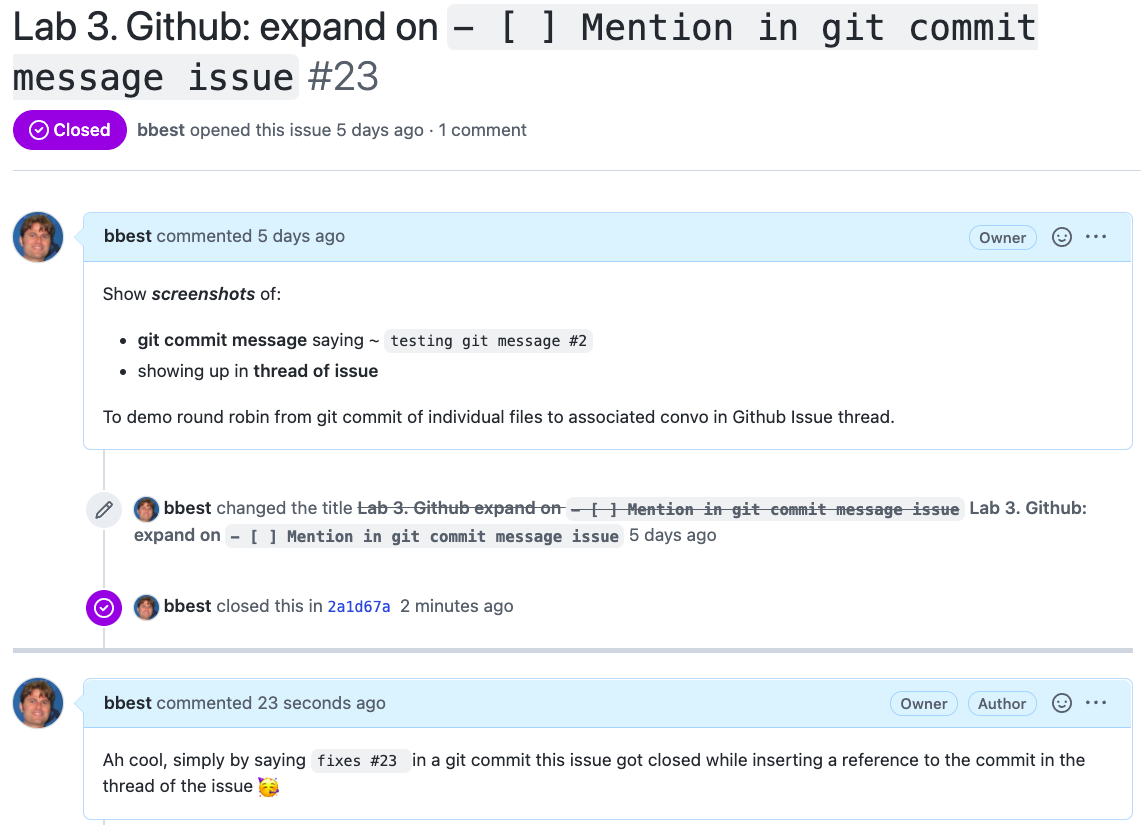

- [ ] Mention in `git commit` message an issue in the same repo

Click the green button Submit new issue.

Please notice a couple things after you initially Create a Github Issue:

9.2 Work through Tasks [all members]

Please next accomplish each task and check the task in the issue’s list. Note the following:

Once you’ve completed all these tasks, Close the issue. Congratulations!

9.3 Create Issues from Project Tasks in {org}/notebook [lead only]

Coordinate amongst your project team the creation of Github Issues into {org}/notebook using your original project Tasks from the first lab.

10 Create Github Milestones in {org}/notebook [lead only]

Milestones allow you to associate a deadline with a cluster of issues. A progress bar shows how many of the issues are closed versus still open. See About milestones - GitHub Docs.

Create Milestones per your original Lab 1 Deliverables with due dates. Change these to whatever is most appropriate for now.

Note that Milestones (an older feature) can only reference issues in the same repo, whereas a Project (a newer feature) can reference any repos with the same {owner}. This Milestones feature is expected to be superseded with a Timeline feature in Github (per mention of “timelines (coming soon)”) to probably provide something like a Gantt chart across repos.

11 Use Github Projects (Beta) [lead only]

The new (Beta) Projects allow you to view your issues, even across repos in the same organization, either:

The new table view adds grouping and sorting to the filtering of the existing board view, which is better for viewing prioritization vertically and time or stage horizontally.

For more, see About projects (beta) - GitHub Docs.

11.1 Create Project (Beta) Plan under {org}

Create a project named Plan for your organization, so under https://github.com/{org} and Projects. Be sure to select New project Beta, not just New project.

11.2 Customize the Plan Project

See Quickstart for projects (beta) - GitHub Docs and follow the instructions there for:

The original Project board may also be referred to as a Kanban (Wikipedia), or “billboard” in Japanese. By prioritizing all issues vertically and sequencing them in time horizontally, any user can filter by Assignee and answer one of our core questions What do I need to work on next?

12 Track Time on Github Issues

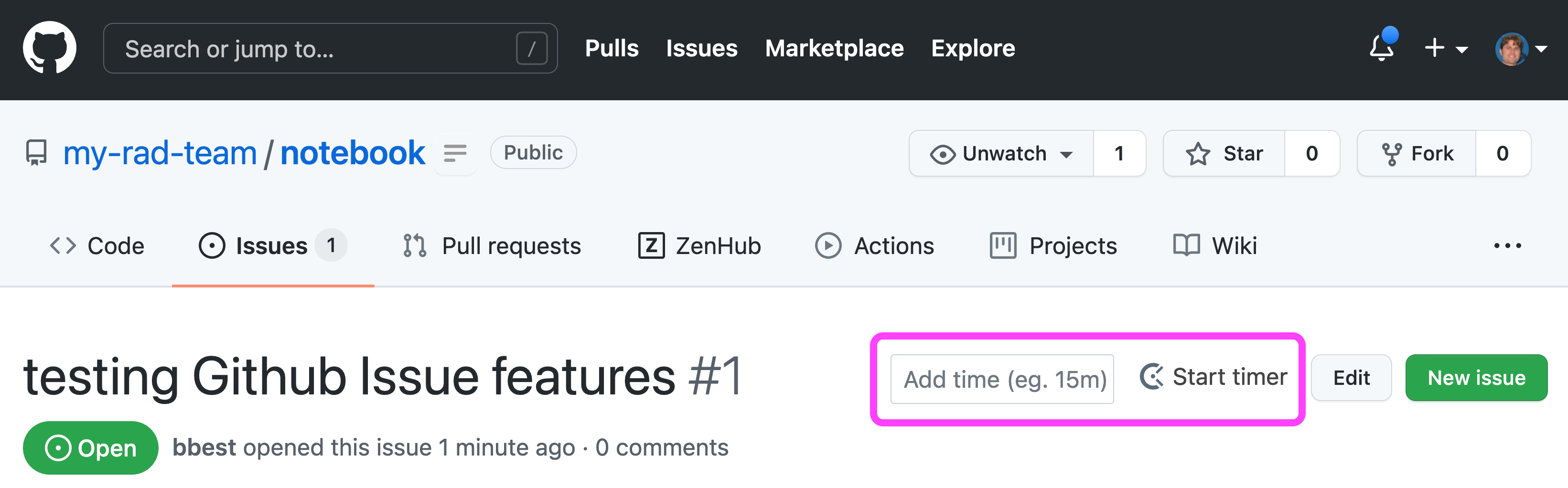

After installing the Clockify browser extension for Google Chrome, Microsoft Edge or Mozilla Firefox, you should see an extra Start timer link displayed when visiting a Github issue.

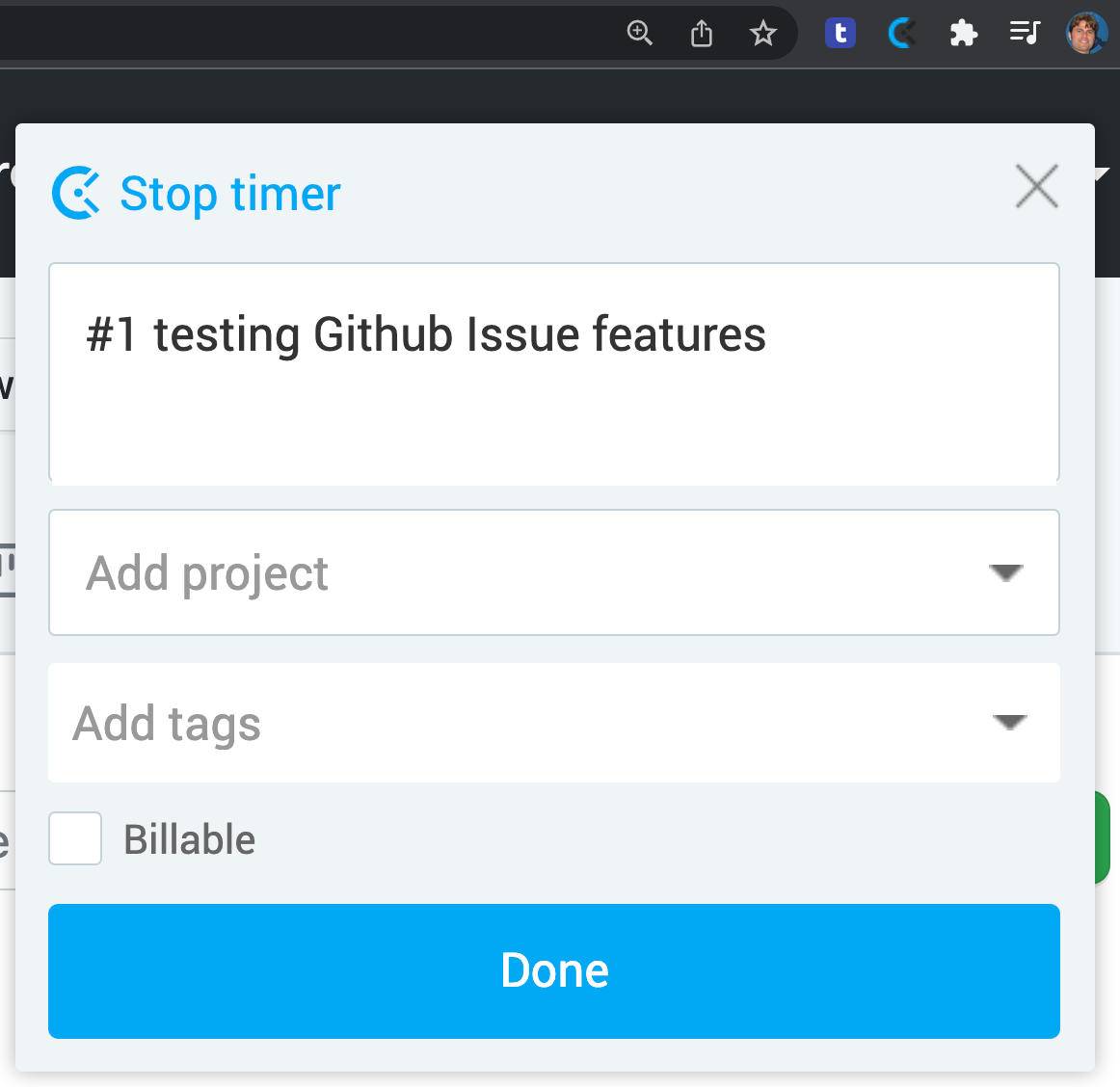

Clicking on Start timer will start the timer with the title and issue number entered into the Description of the Clockify time entry.

You can return to the issue to click on the Stop timer link or more directly in the browser extension.

13 Submit Lab via Form [all members]

Please submit the links to the Clockify project report and your personal time tracking website on Github via the following Google Form using your UCSB email:

Further Reading

Git & Github

Markdown in Github

RStudio with Git & Github

Rmarkdown

Rmarkdown websites

Bren School logo

This website was made with distill by RStudio.
